APR T4100003-A – DTR6054 Direct Replacement Turbo System – w/ LPFP and HPFP
APR DTR6054 Direct Replacement Turbo System – w/ LPFP and HPFP
Fits 2015-2020 Audi S3 – 2022-2023 Audi TT Quattro – 2016-2023 Audi TTS Quattro – 2015-2019 Volkswagen Golf R – 2022-2024 VW Jetta

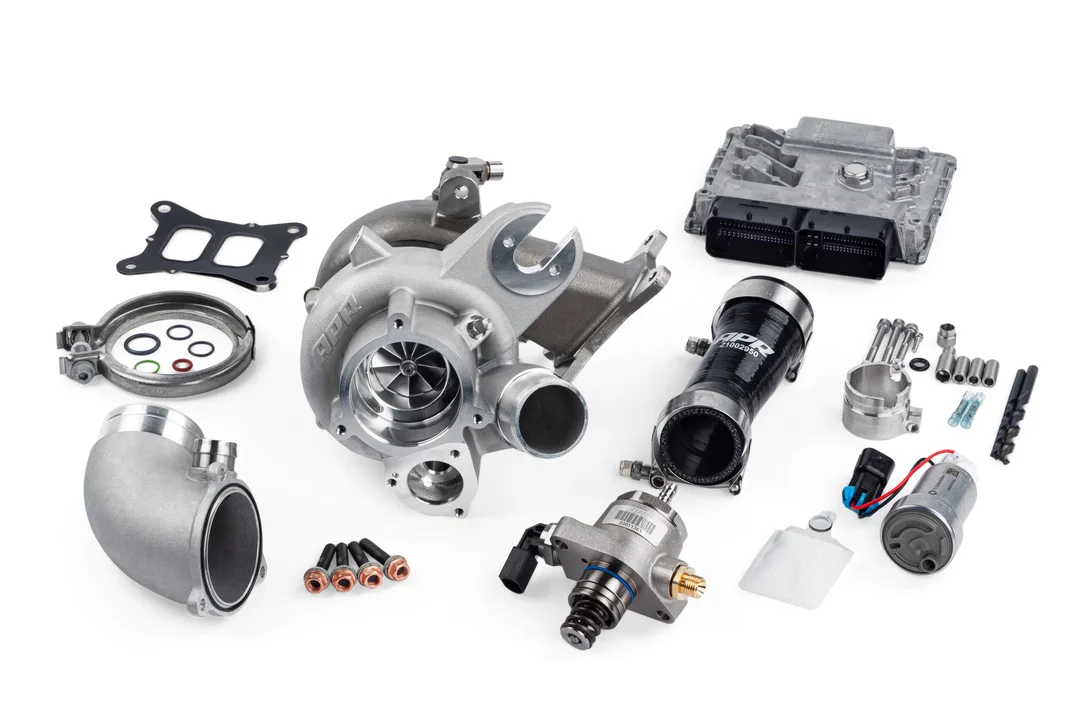

The turbine housing is cast with 310 stainless steel that’s designed to take the heat and abuse seen on a road course. The turbine A/R is perfectly matched to our new nickel-based superalloy K418 54mm turbine wheel. The system will see low exhaust gas temperature, low exhaust back pressure, low turbo discharge temperature, and low shaft speeds because the system has been properly designed from the ground up for the prescribed power levels. Of course, each rotating group is VSR balanced for reliable operation. This all lends well for customers who plan to use this turbo on a dedicated race car as it has the headroom necessary to push the system further on their own.Each kit includes the complete turbocharger with compressor inlet pipe, compressor outlet hose, t-bolt clamps, gaskets, o-rings, exhaust ring, exhaust v-band, exhaust manifold gasket, new studs, bolts, and washers, all new oil and coolant line o-rings, and our ECU Upgrades for select vehicles. The upgrade uses your factory electronic wastegate and diverter valve, and connects to your factory exhaust, intake, turbo outlet pipe, and oil and coolant lines. This system has seen many road course track days and extensive testing to ensure longevity and reliability of the setup in the harshest of conditions. This setup does not spike torque hard or run on the edge of what the factory rods and pistons have been known to handle, making it as safe on the stock engine as we can for these power levels. Go APR!
- New DTR6054 direct turbocharger replacement designed by APR
- Direct bolt-on to MQB platform EA888 gen 3 engines
- Included software included produces up to 491 HP depending on platform and configuration
- APR Low Pressure Fuel Pump Included
- APR High Pressure Fuel Pump Included
- Plenty of turbocharger headroom for even more power in “race only” configurations
- Over 30% compressor flow compared to the factory Golf R, S3, and TT S IS38 turbocharger
- Included software remains emissions compliant and uses your factory exhaust
- Included software designed for use on a factory engine (See notes)
- Included software tested at various road courses
- Various software levels depending on fueling modifications, including stock fueling
- Supports 91, 93, 100, and 104 AKI in all configurations
- Supports E60-E85 with fueling upgrades (Golf R/S3/TT S platform only)
- German dual ceramic ball bearing center section
- Vibration sort rig (VSR) balanced turbocharger center housing rotating assembly (CHRA)
- Excellent transient response
- Aircraft-grade billet 6061 aluminum 60mm compressor wheel
- Anti-surge compressor cover
- Oversized cast turbo inlet pipe
- Machined turbocharger speed sensor port with included billet block off plug
- Perfectly matched compressor cover area over radius (A/R)
- Silicone discharge hose with APR EZ-flow stepped lips included (No turbo muffler)
- Integrated diverter valve (DV) port
- Nickle-based superalloy K418 high-flow 54mm turbine wheel
- High temperature 310 stainless steel turbine housing
- Perfectly matched turbine A/R
- All necessary hardware, gaskets, and clamps included
- Connects to your factory components and reuses factory wastegate and DV
- Fueling kits available for maximum power (Golf R, S3, and TT S platform only)
- Incredible value with support and directions included
Brand: APRCategory: Air and Fuel DeliveryECU Software Included: YesEmission Code: 7Grade Type: PerformanceKit Type: Turbo Kit with LPFP & HPFPProduct Type: Turbocharger SystemsSoftware Included: YesSub Category: Service KitsTurbo Brand: APRTurbo Type: Drop-in TurboWarning: California Proposition 65
