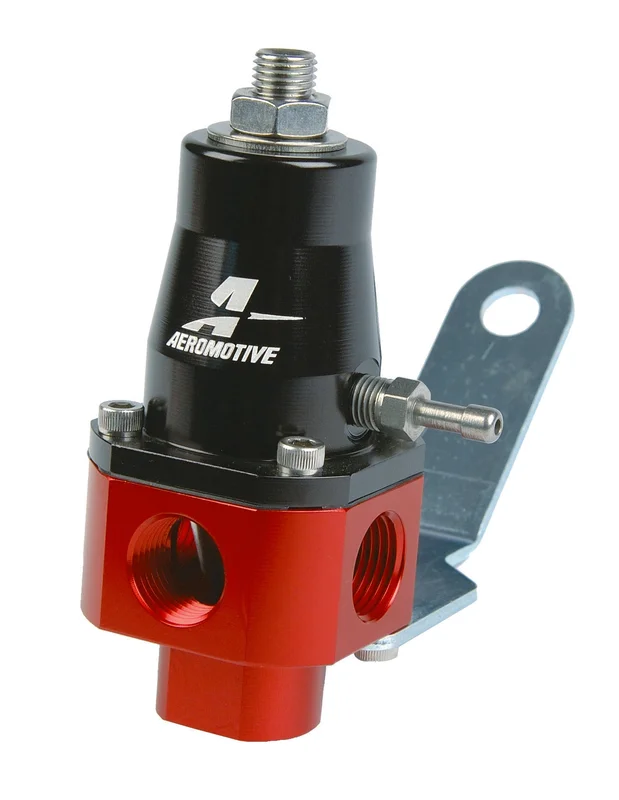

Aeromotive 13301 – Universal Bypass Regulator – 3-Port 3/8in NPT

Description

Aeromotive 13301 – Universal Bypass Regulator – 3-Port 3/8in NPT

Fuel Pressure Regulator – 3 to 60 psi – In-Line – 3/8 in NPT Inlet – 3/8 in NPT Outlet – 3/8 in NPT Return – Black / Red Anodized – E85 / Gas / Diesel – Each

Universal Bypass Regulator – 3-Port 3/8? NPT.

A dual purpose, universal regulator for EFI or Carbureted and street or strip applications. Base pressure adjustable from 3 to 20 PSI with standard spring, (installed) or from 20 to 60 PSI with high pressure spring (included). Offers the full flow and rock steady fuel pressure that only a dynamic, Aeromotive bypass regulator provides. Capable of regulating any fuel pump between 100 and 250 GPH. Fuel pressure rises on a 1:1 ratio when referencing boost. All ports are 3/8′ NPT, with one inlet and three outlets on the main body and one return port on the bottom. Bypass design provides the ultimate, dynamic fuel pressure control.?Note: Requires a return line to be installed from the bottom of the regulator to the top of the tank.

Adjustable: YesColor: Black/RedFuel Delivery Type: Carburation or FuelinjectionGauge Included: NoGauge Port: YesGrade Type: PerformanceInlet Gender: FemaleInlet Gender.1: FemaleInlet Port Diameter: 3/8Marine Approved: NoMaximum Pressure: 60Minimum Pressure: 2Mounting Bracket Included: YesOutlet Port Diameter: 3/8Port Quantity: 4Pressure Range: 2-60Return Port Diameter: 3/8Return Port Gender: FemaleVacuum/Boost Port: Yes
