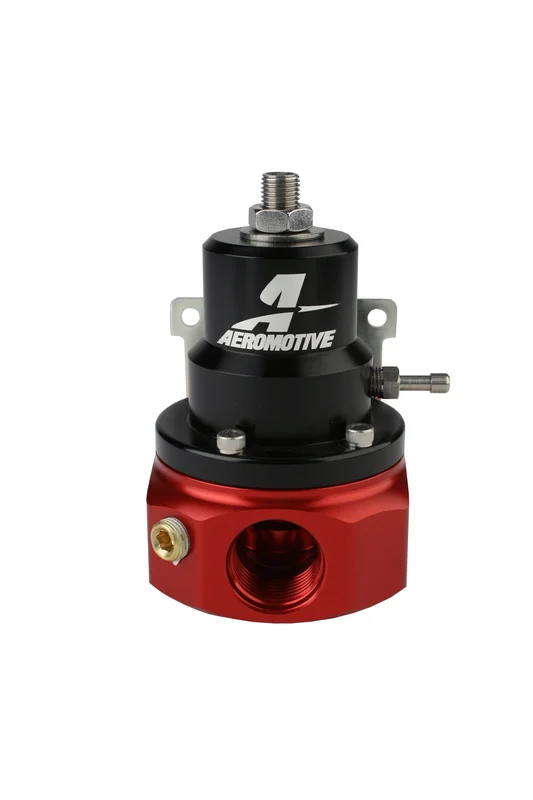

Aeromotive 13224 – A1000 4-Port Carbureted Bypass Regulator – 4 x AN-06 / 1 x AN-10

Description

Aeromotive 13224 – A1000 4-Port Carbureted Bypass Regulator – 4 x AN-06 / 1 x AN-10

Fuel Pressure Regulator – A1000 – 3 to 15 psi – In-Line – 10 AN Female O-Ring Inlet – Four 6 AN Female O-Ring Outlets – 8 AN O-Ring Return – Bypass – 1/8 in NPT Port – Black / Red Anodized – E85 / Gas / Diesel – Each

A1000 4-Port Carbureted Bypass Regulator, 4 x AN-06, 1 x AN-10.

The A1000 Bypass Regulators were designed for use with our A1000 and Eliminator Fuel Pumps or similar style EFI pumps in a carbureted application. These regulators are perfect for naturally aspirated or ?blow-through? supercharged engines. Base fuel pressure adjustable from 3-15 PSI. (1) ORB-10 inlet port and (1) ORB-08 return port. P/N 13224 provides (4) ORB-06 outlet ports and 1/8′ NPT gauge port. Fuel pressure rises on a 1:1 ratio when referencing boost. Bypass design provides the ultimate, dynamic fuel delivery system. Ideal for converting from fuel injection to carburetion using the stock, in-tank pump. EFI conversions will require a larger-than-stock return line for proper low pressure control.

Adjustable: YesColor: Black/RedFuel Delivery Type: CarburationGauge Included: NoGauge Port: YesGrade Type: PerformanceInlet Gender: FemaleInlet Gender.1: FemaleInlet Port Diameter: ORB-10Marine Approved: NoMaximum Pressure: 15Minimum Pressure: 3Mounting Bracket Included: YesOutlet Port Diameter: ORB-06Port Quantity: 5Pressure Range: 3-15Return Port Diameter: ORB-08Return Port Gender: FemaleVacuum/Boost Port: Yes
