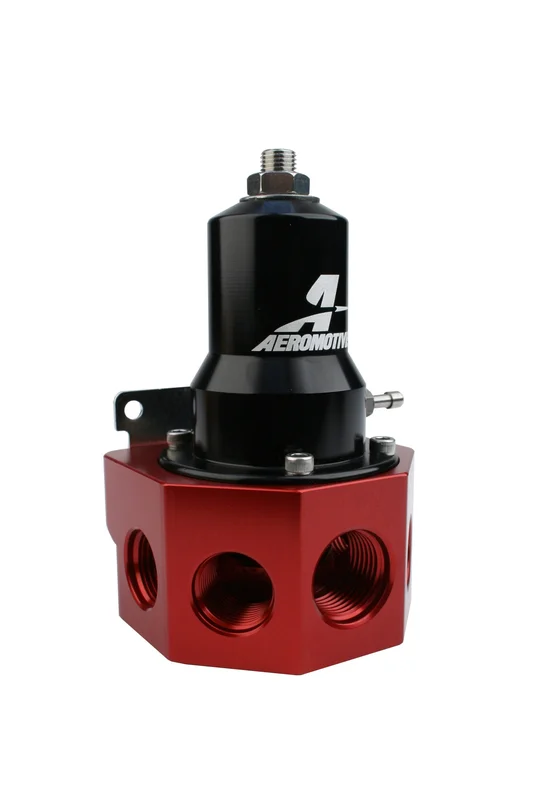

Aeromotive 13133 – Regulator – 30-120 PSI – .500 Valve – 4x AN-08 and AN-10 inlets / AN-10 Bypass

Description

Aeromotive 13133 – Regulator – 30-120 PSI – .500 Valve – 4x AN-08 and AN-10 inlets / AN-10 Bypass

Fuel Pressure Regulator – Low Flow EFI – 30 to 120 psi – In-Line – 10 AN Female O-Ring Inlet – 8 AN Female O-Ring Outlet – 1/8 in NPT Port – E85 / Gas / Diesel – Each

Pro Mod EFI Gear Pump Regulator, 30-120 psi, .500 Valve, 4x AN-08 & AN-10 inlets, AN-10 Bypass.

Extreme Flow EFI Regulator Designed for use with Belt or Hex Drive Fuel Pumps. Expanded 5-port body with one AN-10 inlet port plus four AN-08 outlet ports and one AN-10 return port. 0.500 High Flow Valve/Seat, able to handle 7-26 GPM Fuel Pump. Dual Springs expand operating pressure range while maintaining a low profile and reduced weight. Standard spring (installed) supports 30-75 PSI base fuel pressure. High pressure spring (included) supports 75-120 PSI base fuel pressure. Supports vacuum and boost reference on a 1:1 ratio with PSI.

Adjustable: YesColor: Black/RedFuel Delivery Type: Fuel InjectionGauge Included: NoGauge Port: YesGrade Type: PerformanceInlet Gender: FemaleInlet Gender.1: FemaleInlet Port Diameter: ORB-10Marine Approved: NoMaximum Pressure: 120Minimum Pressure: 30Mounting Bracket Included: YesOutlet Port Diameter: ORB-08Port Quantity: 5Pressure Range: 30-120Return Port Diameter: ORB-10Return Port Gender: FemaleVacuum/Boost Port: Yes
