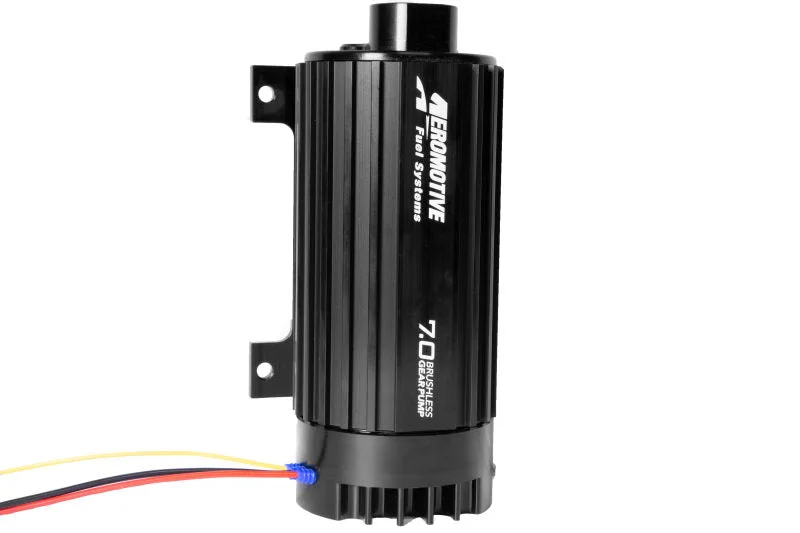

Aeromotive 11197 – TVS In-Line Brushless Spur 7.0 External Fuel Pump

Description

Aeromotive 11197 – TVS In-Line Brushless Spur 7.0 External Fuel Pump

Fuel Pump – TVS – Brushless – Electric – In-Line / In-Tank – 7 gpm at 90 psi – 12 AN Female O-Ring Inlet – 10 AN Female O-Ring Outlet – Aluminum – Black Anodized – Each

Fuel Pump, TVS, In-line, Brushless, Spur, 7.0.

7.0 GPM Brushless Fuel Pump with True Variable Speed Controller. Ground-Shaking Performance ? Advanced Technology. Fuel Injected Engines: up to 4,800 FWHP on GAS ? naturally aspirated, up to 3,400 FWHP on GAS ? forced air induction, up to 3,360 FWHP on E85 ? naturally aspirated, up to 2,380 FWHP on E85 ? forced air induction. E85 Compatible, reduce max FWHP by 30%. Lighter than the traditional external mount pumps. Reduced current draw at higher, EFI pressures. Extended service life in methanol and ethanol. New integral spur-gear pumping mechanism.

Carb HP on E85: 3780Carb HP on Gas: 5400EFI HP on E85: 3360EFI HP on Gas: 4800Filter Included: NoFuel Delivery Type: Carburation & Fuel InjectionFuel Sending Unit Included: NoFuel Type: Gas/E85Gasket Or Seal Included: NoGrade Type: PerformanceInlet Outside Diameter: ORB – 12Inlet Type: Female ThreadIntegrated Controller: YesInternal Or External: ExternalMarine Approved: NoMaximum Current Draw: 12 @ 40 psiMaximum Flow Rating: 7.0 GPMMaximum Pressure: 90Motor Style: BrushlessMounting Bracket Included: YesMounting Hardware Included: NoNegative Ground: YesOutlet Outside Diameter: ORB – 10Outlet Type: Female ThreadPulse Width Modulation Compatible: NoPump Design: Spur GearRegulator Included: NoSeal And Lock Ring Included: NoSeries: 7.0GPMStrainer Included: NoTerminal Quantity: 0Terminal Type: Lead WireUniversal Or Specific Fit: UniversalVoltage: 12Wire Quantity: 3Wiring Harness Included: No
