Description

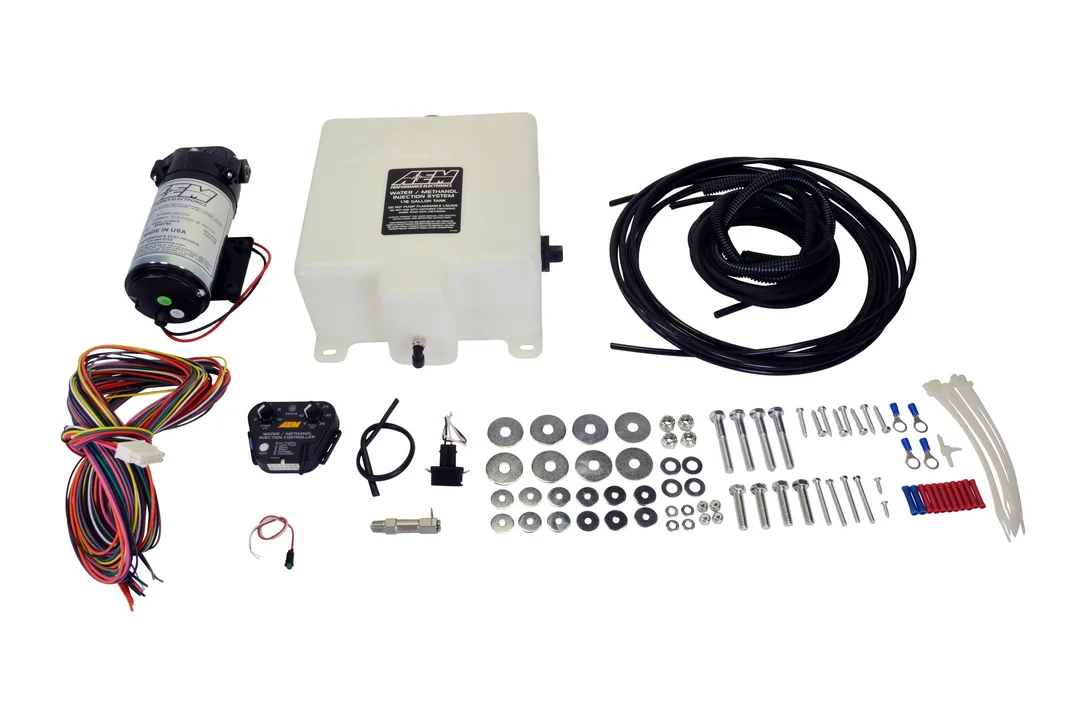

AEM 30-3300 – V3 1 Gallon Water/Methanol Injection Kit (Internal Map)
Water Injection System – Boost Reference Controlled – 1 gal Reservoir – Universal Gas – Kit
V2 Water/Methanol Injection Kit, Standard Controller – Internal MAP with 35psi max, 200psi WM Pump, 1.15 Gallon Reservoir, Conductive Fluid Level Sensor
These new controllers retain the “Boost Safe” injection failsafe system, which is an output that will activate if there is a short, loss of continuity or high or low voltage or low fluid condition, allowing users to define their failsafe strategy from something as simple as flashing a warning light to more advanced strategies like pulling boost or ignition, or switching fuel maps on a standalone engine management system.Simplified WiringThe new wiring harness is terminated with a positive-lock connector on one end and has color-coded wires to ease installation. An integrated Pump Ground circuit is included in the harness which simplifies the wiring process and eliminates any chance of the pump accidentally activating from a short in the system. An additional wire is included for adding an optional on/off solenoid to stop fluid flow when the system is inactive.Improved Injector Flow Rate & Nozzle SizesAEM’s engineers spent extensive time revamping the controller’s flow control strategy for a more linear flow output delivery. This means that the flow delivery better matches an engine’s need for water/methanol injection, which further optimizes charge air cooling and detonation control. Three resized injector nozzles are in each kit and allow for improved flow capability (a flow graph is available on our website).New Low Level Fluid IndicatorA more accurate, conductive low level fluid sensor is integrated into the tank and features a positive lock connector with color-matched wires to the wiring harness. The sensor eliminates any chance of incorrect readings due to interference from debris.
- Terminated harness features positive lock connector with integrated pump ground circuit and additional wire for optional on/off flow solenoid
- 1-gallon tank with built-in conductive low fluid level indicator
- Includes “Boost Safe” readiness failsafe system
- One machined billet injector with integral check valve to prevent unintended flow
- Three interchangeable injector nozzles to cover a wide variety of HP levels (250cc/min, 500 cc/min & 1,000cc/min)
- Recirculation-style pump with integral fittings for quiet operation
- LED dash light for system status and low fluid warning
- 20 ft. of high-pressure nylon injection tubing
- CONTROLLER FEATURES:
- 30-3300 Boost Dependent kit (up to 35PSI) includes molded-in nipple for boost hose
- 30-3350 Multi Input kit for high compression naturally aspirated and forced induction applications
- Large adjustment knobs and numbering for easy programming
- Covered status LED and test button for improved splash resistance
- Integrated plug for mating to positive-lock connector on harness
- Integrated fuse and mounting tabs
Brand: AEMCategory: Water/MethanolEmission Code: 5Grade Type: Professionalpart type: Water Injection System KitProduct Type: Water Methanol InjectionSub Category: Service KitsUniversal Or Specific Fit: UniversalWarning: California Proposition 65Warranty: Manufacturer’s 1 Year Warranty
