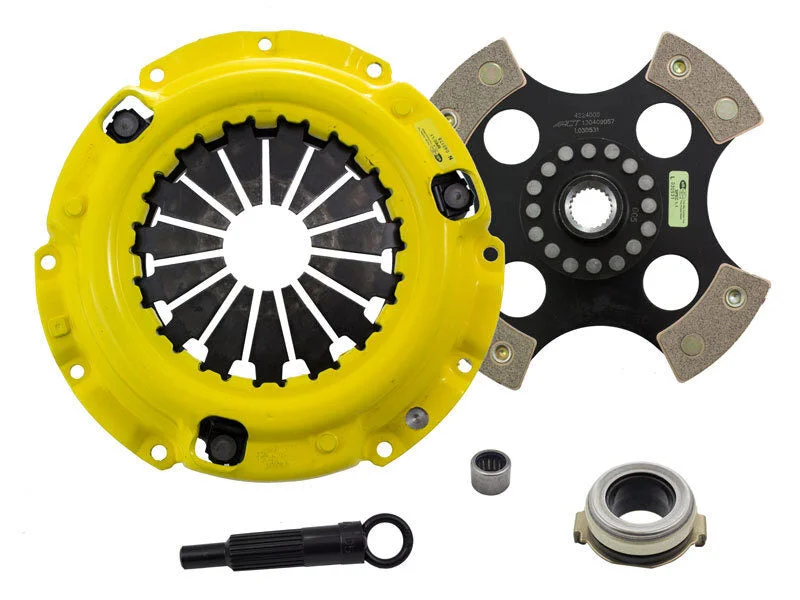

ACT ZM5-HDR4 – 2006 Mazda MX-5 Miata HD/Race Rigid 4 Pad Clutch Kit

Description

ACT ZM5-HDR4 – 2006 Mazda MX-5 Miata HD/Race Rigid 4 Pad Clutch Kit

ACT Heavy Duty Race Rigid 4 Pad Clutch Kit

HD/Race Rigid 4 Pad

ZM5-HDR4 kit features ACT’s most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

• “Excellence in Performance”, backed by the best one-year warranty in the industry!

Product Weight (lbs.): 12.0Torque Capacity (ft/lbs.): 359Torque Capacity Over OE: 71%Pilot Bushing Included: NoPressure Plate Type: Heavy DutyRelease Bearing Included: YesClutch Disc Diameter: 8.8Clutch Disc Diameter: 224Disc Material: CeramicInput Spline Quantity: 22Input Shaft Diameter: 0.9375Alignment Tool Included: YesDisc Type Sprung Solid: SolidPressure Plate Bolts Included: YesGrease Included: YesGrade Type: PerformanceClutch Slave Cylinder Included: NoFlywheel Bolts Included: NoPilot Bearing Included: YesClutch Master Cylinder Included: NoPart Fitment Requirement: 5 Speed applications only. Pressure plate bolts included (M8-1.25 x 20mm).
