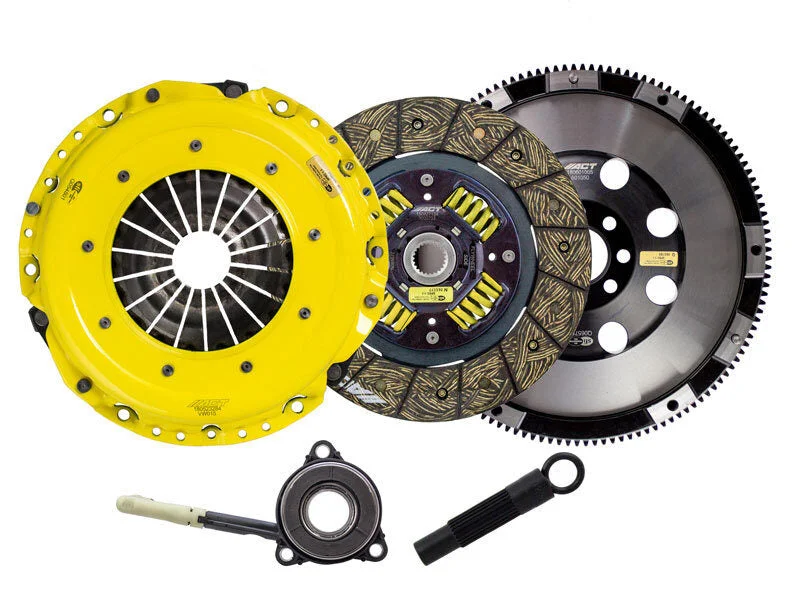

ACT VW9-XTSS – 15-17 Volkswagen GTI/Golf R XT/Perf Street Sprung Clutch Kit

Description

ACT VW9-XTSS – 15-17 Volkswagen GTI/Golf R XT/Perf Street Sprung Clutch Kit

Clutch Kit – Extreme – Dual Disc – 9.4 in Diameter – 15/16 in x 23 Spline – Sprung Hub – Organic – Volkswagen Golf 2015-24 – Kit

XT/Perf Street Sprung

VW9-XTSS kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.

• “Excellence in Performance”, backed by the best one-year warranty in the industry!

Torque Capacity (ft/lbs.): 565Torque Capacity Over OE: 79%Flywheel Included: YesPressure Plate Type: XtremeRelease Bearing Included: YesClutch Disc Diameter: 9.4Clutch Disc Diameter: 240Disc Material: OrganicInput Spline Quantity: 23Input Shaft Diameter: 0.9375Alignment Tool Included: YesDisc Type Sprung Solid: SprungPressure Plate Bolts Included: YesGrease Included: YesGrade Type: PerformanceClutch Slave Cylinder Included: NoFlywheel Bolts Included: YesClutch Master Cylinder Included: NoFlywheel Type: StreetlitePart Fitment Requirement: Flywheel bolts included (M10-1.0 x 22mm). Pressure plate bolts included (M8-1.25 x 20mm).Product Weight (lbs.): 32.5
